Introduction

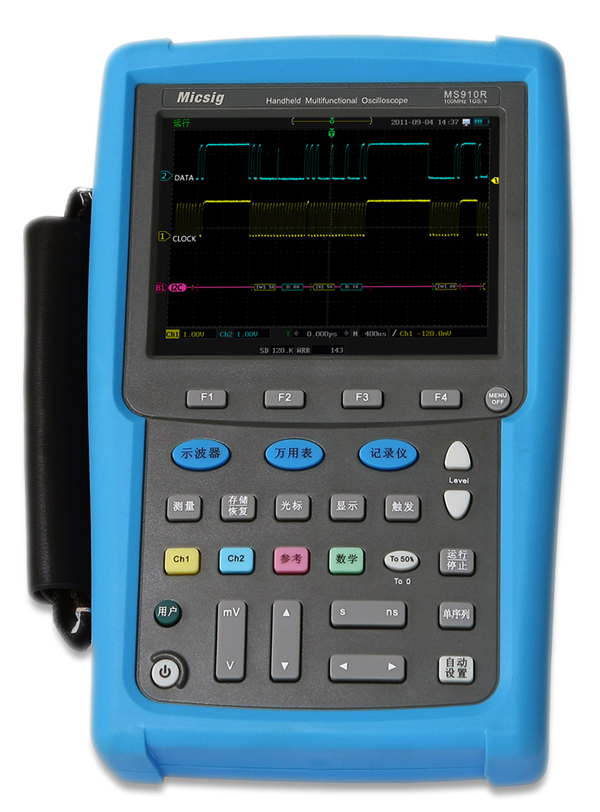

　　MS910R railway special oscilloscope, which introduces the latest isolated technology, has the functions of Frequency Shift Meter, High-voltage Pulse Test Meter, Oscilloscope, Multimeter, Data logger and Serial Bus Analyzer. Complete electrical isolation between channels or channel with ground，the isolation degree is complied with CATII 1000V,CATIII 600V. Floating measurement and field measurement are both supported. It comes with an excellent high refresh rate to display details of any weak sudden signals, which allows you to find many hidden problems. Serial bus analyzer function makes field analysis easier. The instrument is light and portable. Local storage and external storage extension are both supported. With large capacity, the Li-ion battery of the oscilloscope can be replaceable. Equipped with USB2.0 full-speed interface, the oscilloscope can be synchronous controlled and on-line upgraded via PC. It is the ideal choice for outdoor railway workers.

Features

►Complete electrical isolation between all analog channels, supporting floating measurements;
►5.7" TFT color LCD display , 640*480 resolution;
►USB2.0 host / peripheral interface, Fdisk and PC remote control are supported;
►Operate by buttons, wheel or touch;
►Support measurement for Chinese Frequency Shift , UM71, ZPW-2000, WG-21 and other standard track circuit signal;
►Support high voltage pulse circuit measurement, high voltage pulse and frequency shift mixed measurement;
►100MHZ bandwidth, 1GSa/s maximum real time sample rate, Memory depth Up to 240KB;
►Up to 190K wfrms/s;
►HD video trigger;
►31 types of waveform measurement functions，3 cursor measurement modes;
►5 waveform calculation modes: +, -, *, /, and FFT;
►Colored afterglow, color depth adjustable;
►Waveform dragging or zooming on touch screen ;
►Serial decoding module (optional),to analyze 5 types of serial bus(RS232/UART, SPI, I2C, CAN, LIN);
►Waveform dynamic recording;
►Multimeter function Supports 11 kinds of physical measurement, such as voltage, current, resistance, capacitance, diode, continuity, temperature, humidity, etc;
►3 recording modes：multimeter measurement record, oscilloscope measurement record, oscilloscope waveform record;
►Built-in help system.

Composition:

MS910R oscilloscope, current clamp and testing line, rechargeable Li-ion battery, power adapter,USB cable, data management software(optional).
